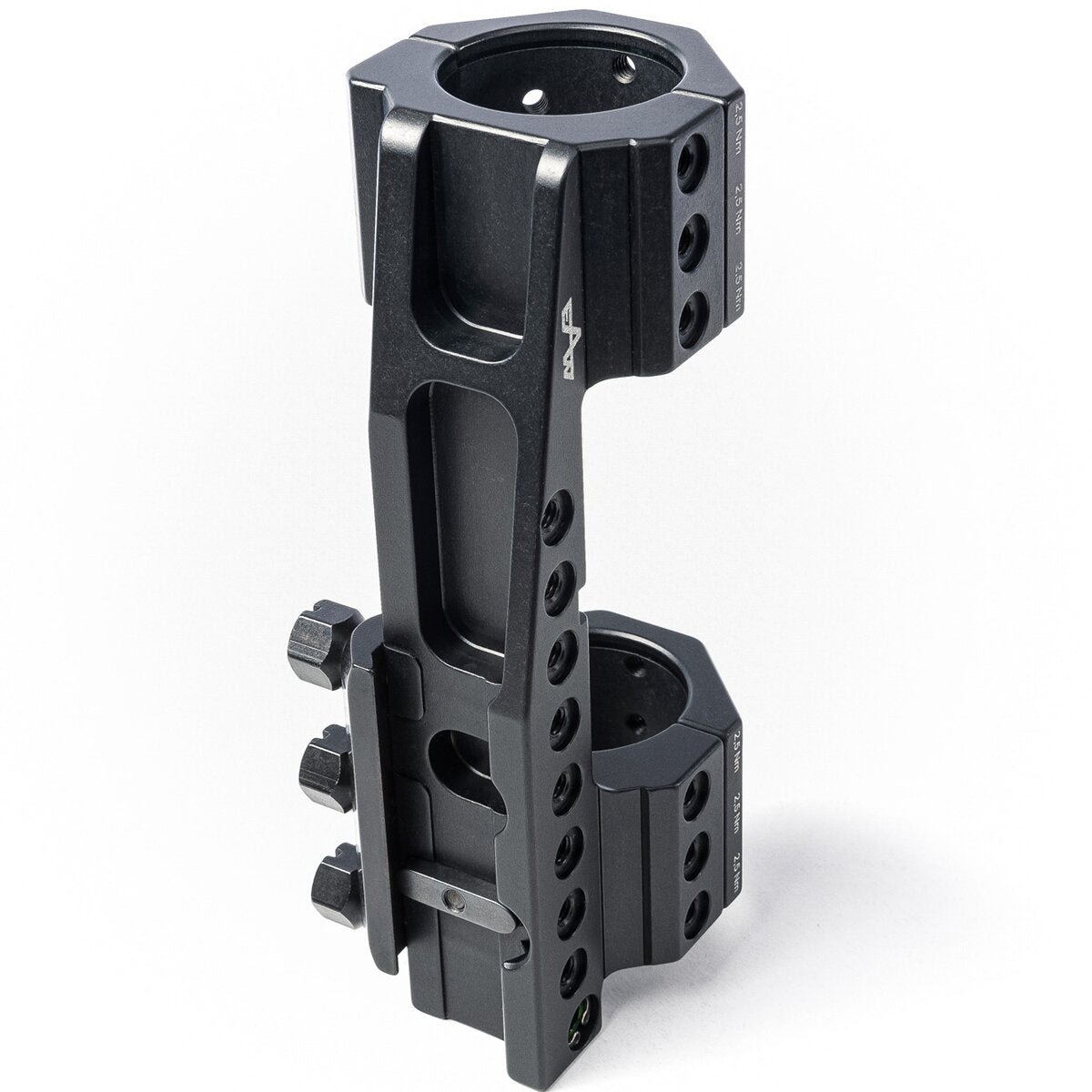

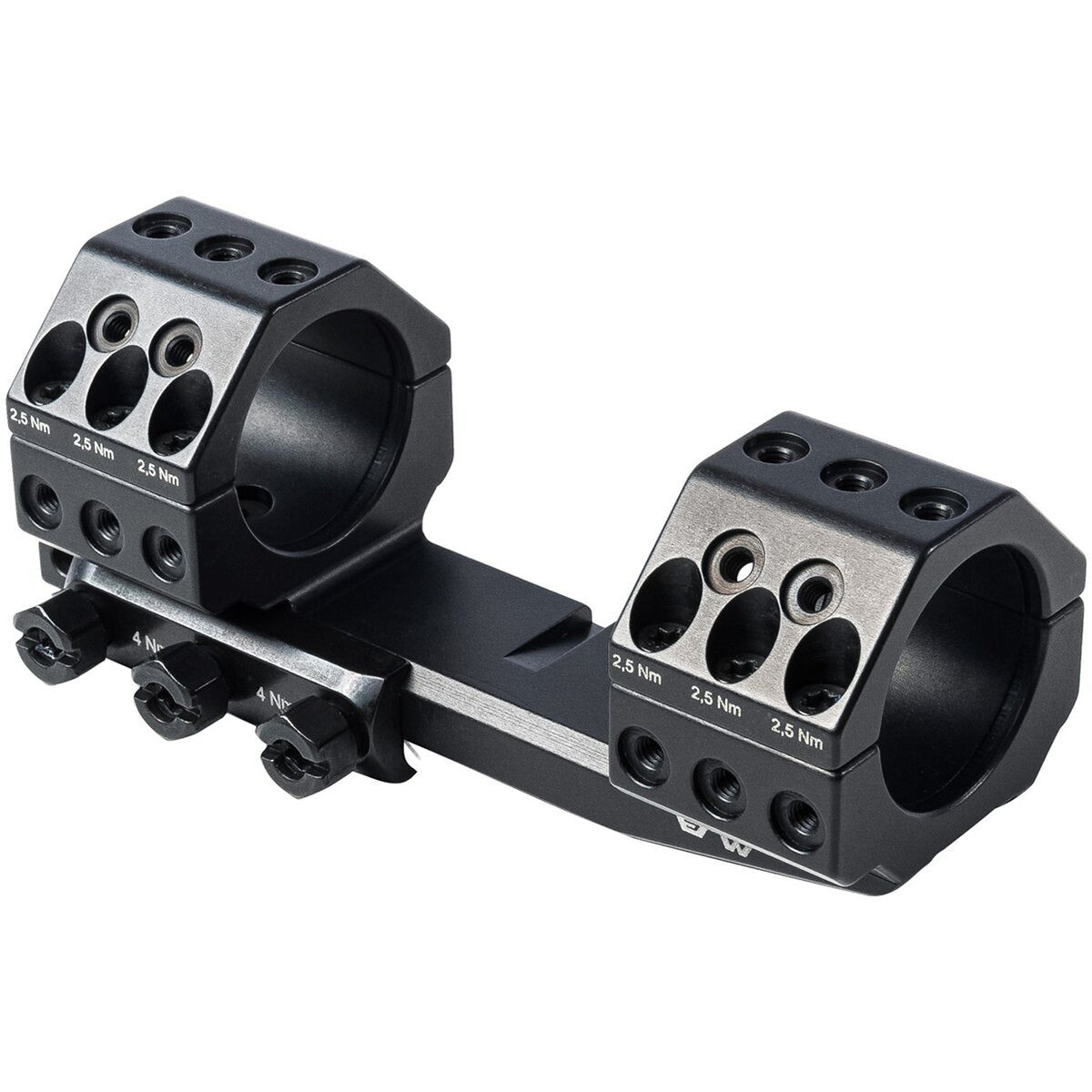

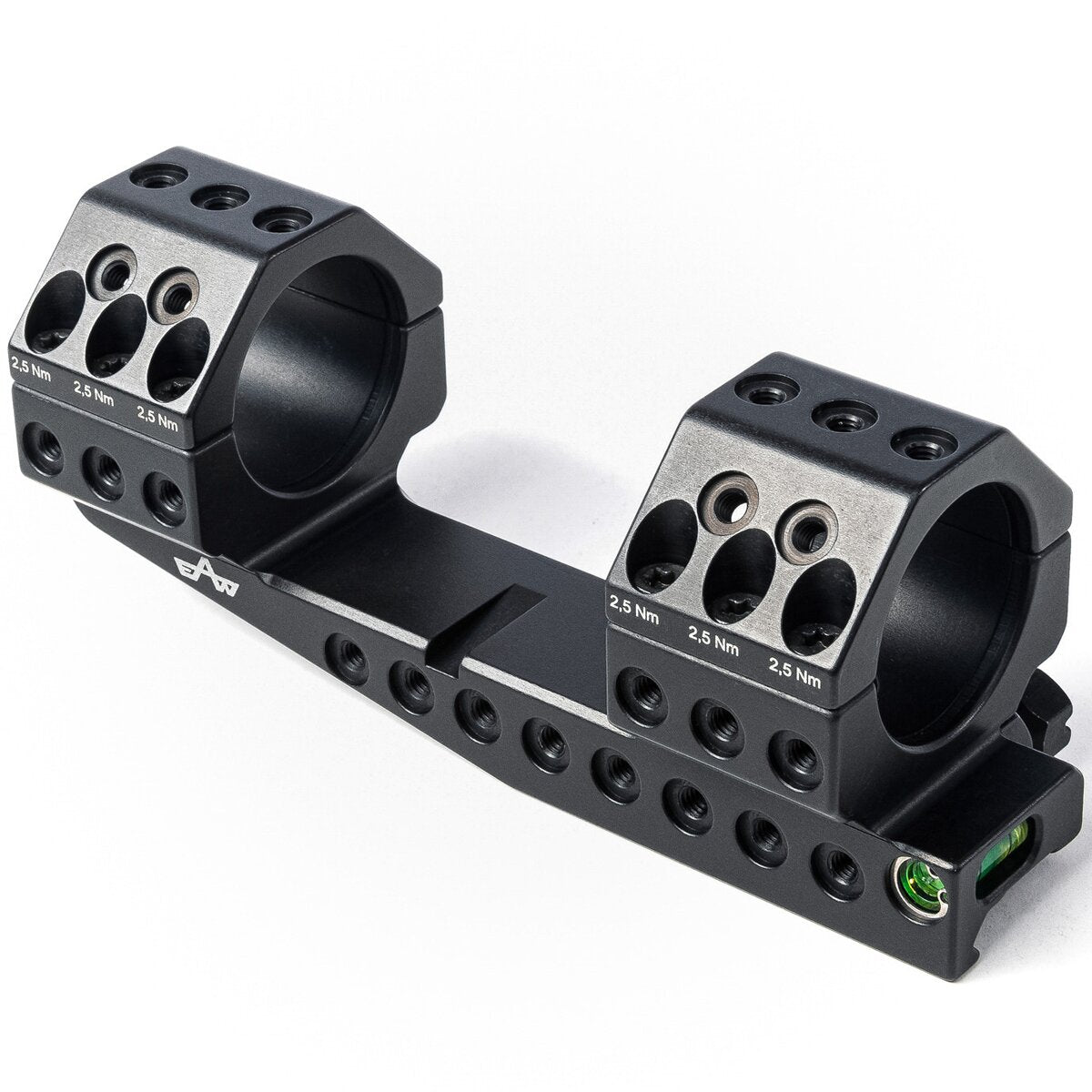

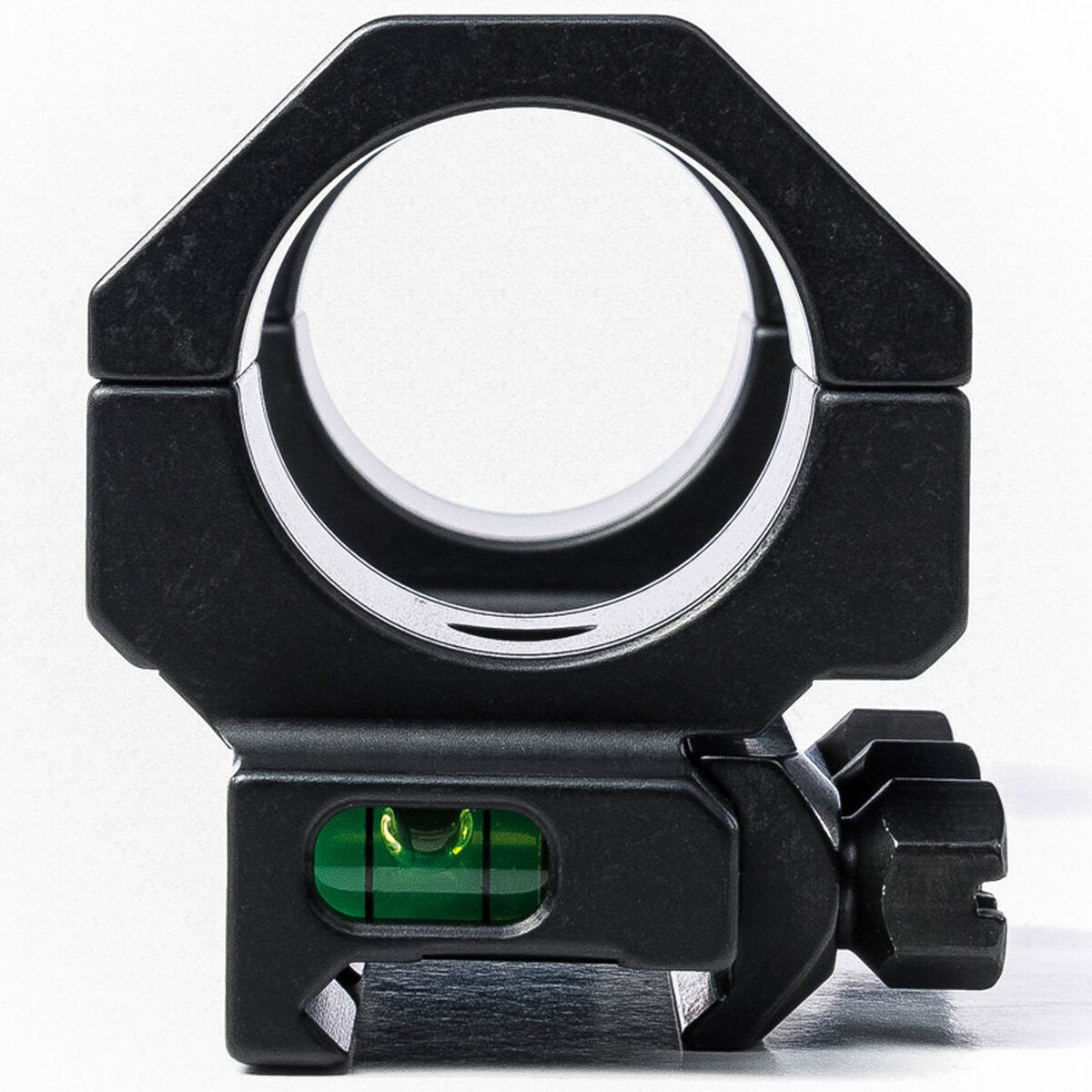

EAW Block mount GTM for Picatinny with offset (BH/Ø: 15/30 mm)

The EAW GTM block mount with offset is a one-piece mount for riflescopes with a 30 mm tube on a Picatinny rail. This version has a 15 mm mounting height and holds the scope 70 mm further forward than a standard block mount. GTM stands for German Tactical Mount, EAW's Picatinny line, milled from 7075 aluminium with a steel recoil stop that bears full-face against the rail's teeth.

Specifications

What it's for

• When the scope needs to sit further forward. On a rifle with a short or rear-set rail, or with a scope whose eye relief puts it too far back, the 70 mm offset moves the scope forward to where your eye is.
• A one-piece mount for one 30 mm scope. Both rings are part of one block, so they are aligned with each other and you don't buy separate rings.
• A low mount. 15 mm is the lowest height of this offset mount for a 30 mm tube, so the scope sits close to the bore. Check that your scope's objective bell and turrets clear the rail and barrel at this height. EAW also makes this mount in 19 and 23 mm heights for 30 mm scopes.
• Before you order. The block clamps on a Picatinny rail with the recoil stop in one of the rail's slots, so the rail must have a free slot where the clamp sits. Rings or block for a 34 mm tube are a different item.

€10 delivery across Europe, or collect your order free at our range in Riga. Unused items in their original packaging can be returned within 30 days.
