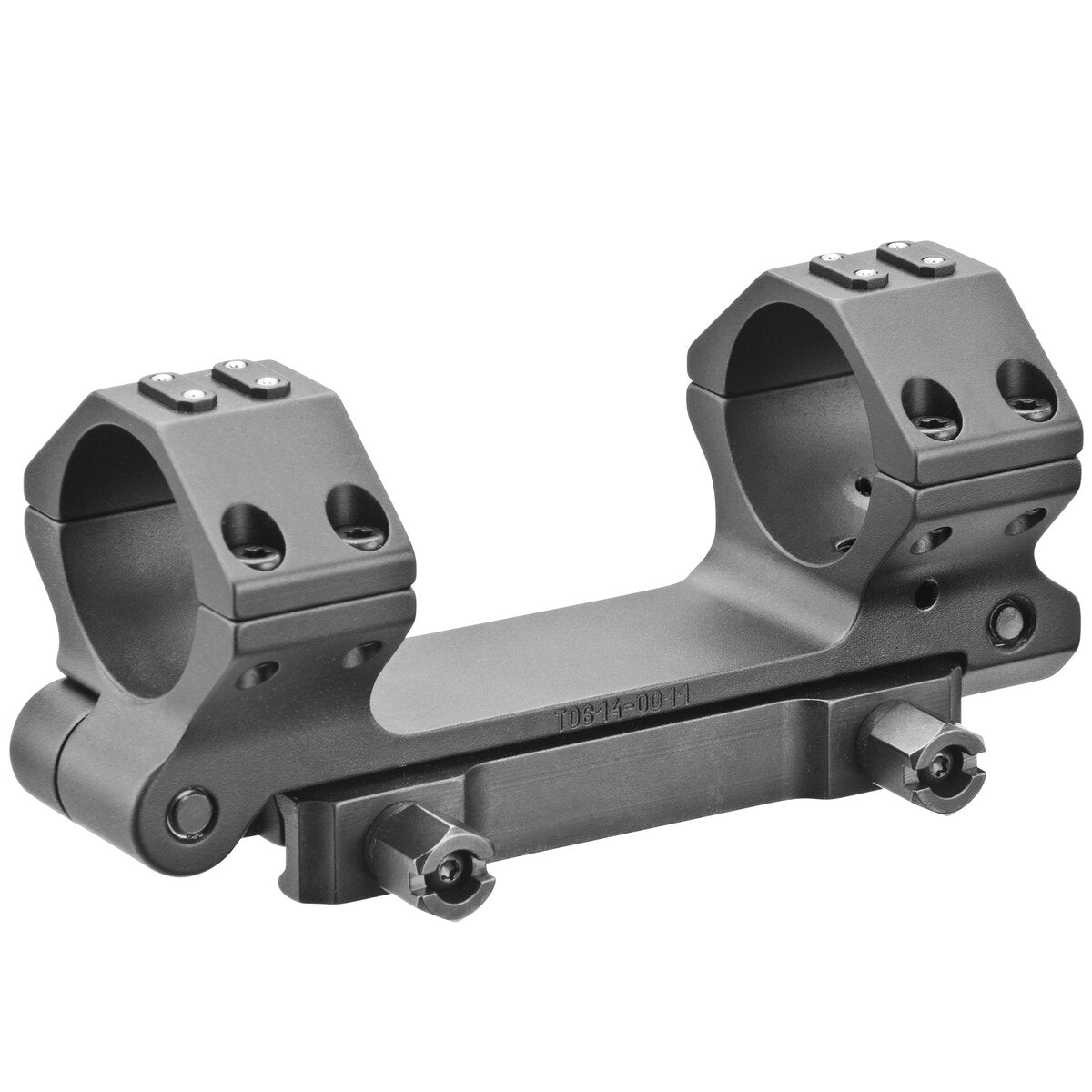

The new Eratac block assembly with adjustable Vorn tilt offers an optimal solution for shooting at long distances. Today's rifle scopes usually have a large zoom factor and can therefore be used at a wide variety of distances. The vertical adjustment range of the reticle is often not sufficient to be able to adjust the rifle scope to very long shooting distances. This assembly was developed to compensate for the lack of adjustment range.
Vorninclination
The VornInclination of the mounting can be individually adjusted in steps of 10 from 0 - 70 MOA. Both the mounting and the rifle scope can remain mounted on the weapon and do not have to be removed!
100% bullet resistance
The upper and lower parts of the assembly are positively connected to one another using a screw that runs diagonally through the adjusting wheel. The hinge is designed as a solid cone connection. This ensures that the components fit without play. Self-locking thread inserts guarantee a permanent fit of the two screw connections. Eratac guarantees 100% repeatability and shot resistance.
Manufactured to military standards
The Eratac block assemblies are milled from solid solid aluminum and hard-anodized to Mil-Spec Type III. Eratac guarantees that all components are completely rust-free. The block assembly rings are equipped with a universal interface. The assembly lock is produced without any parts that can be lost.
- Ring Ø: 30 mm
- Ring width: 25 mm
- Length: 136 mm
