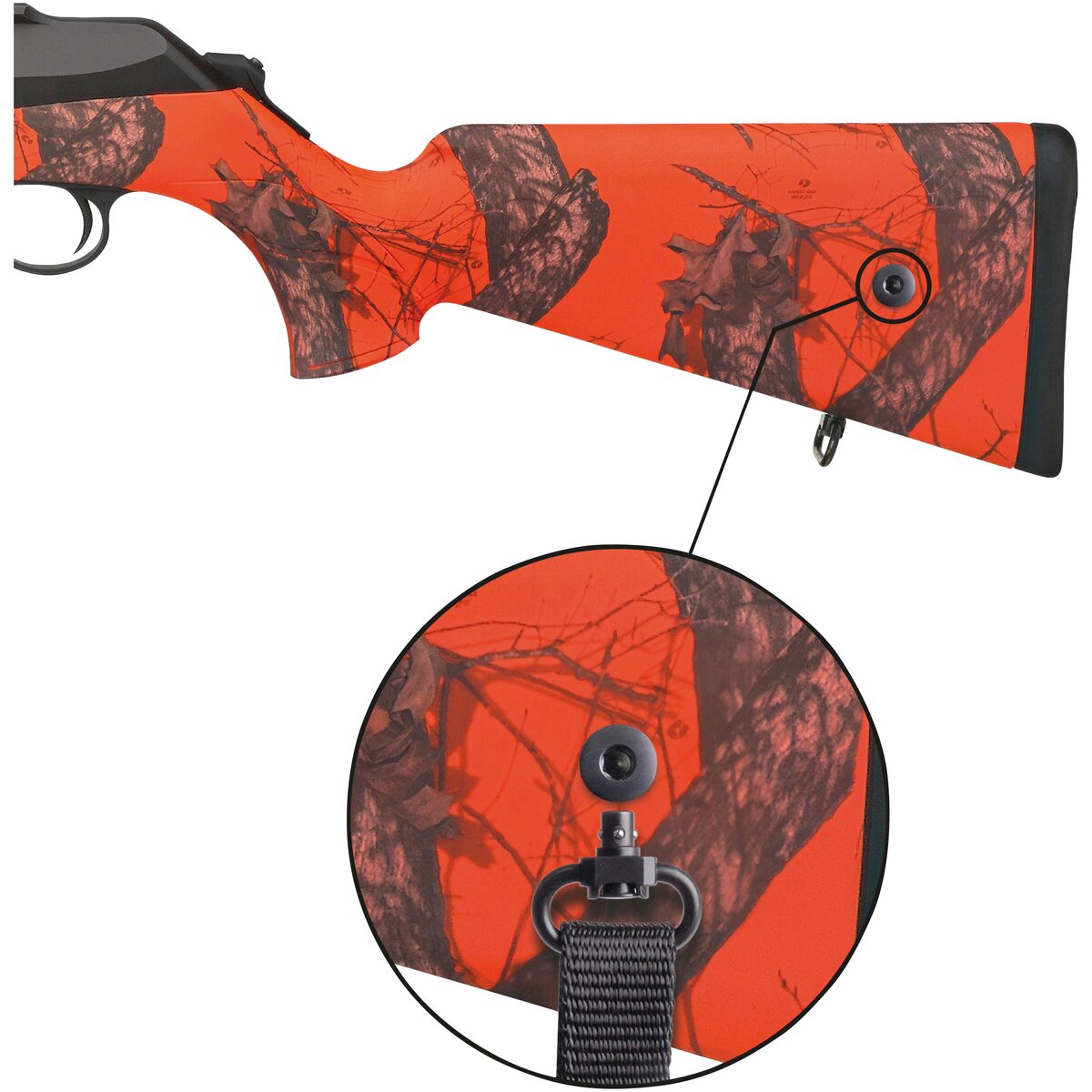

Whether shooting range, hide, cleaning or transport, the rifle sling often has to be removed. The PUSH & GO sling swivel offers the fastest and safest solution for this. The socket allows the sling swivel to be attached to the side of stocks made of wood and plastic. Suitable for belt widths up to 23 mm.
When locked, allows for continuous 360° rotation of the strap. Ideal for carrying the weapon more comfortably when tracking.
Assembly
plastic shaft
- Drill the location hole according to the information
- Insert bushing and secure with nut and washer
wooden shaft
Insert M10 thread, screw in bushing and secure with glue.

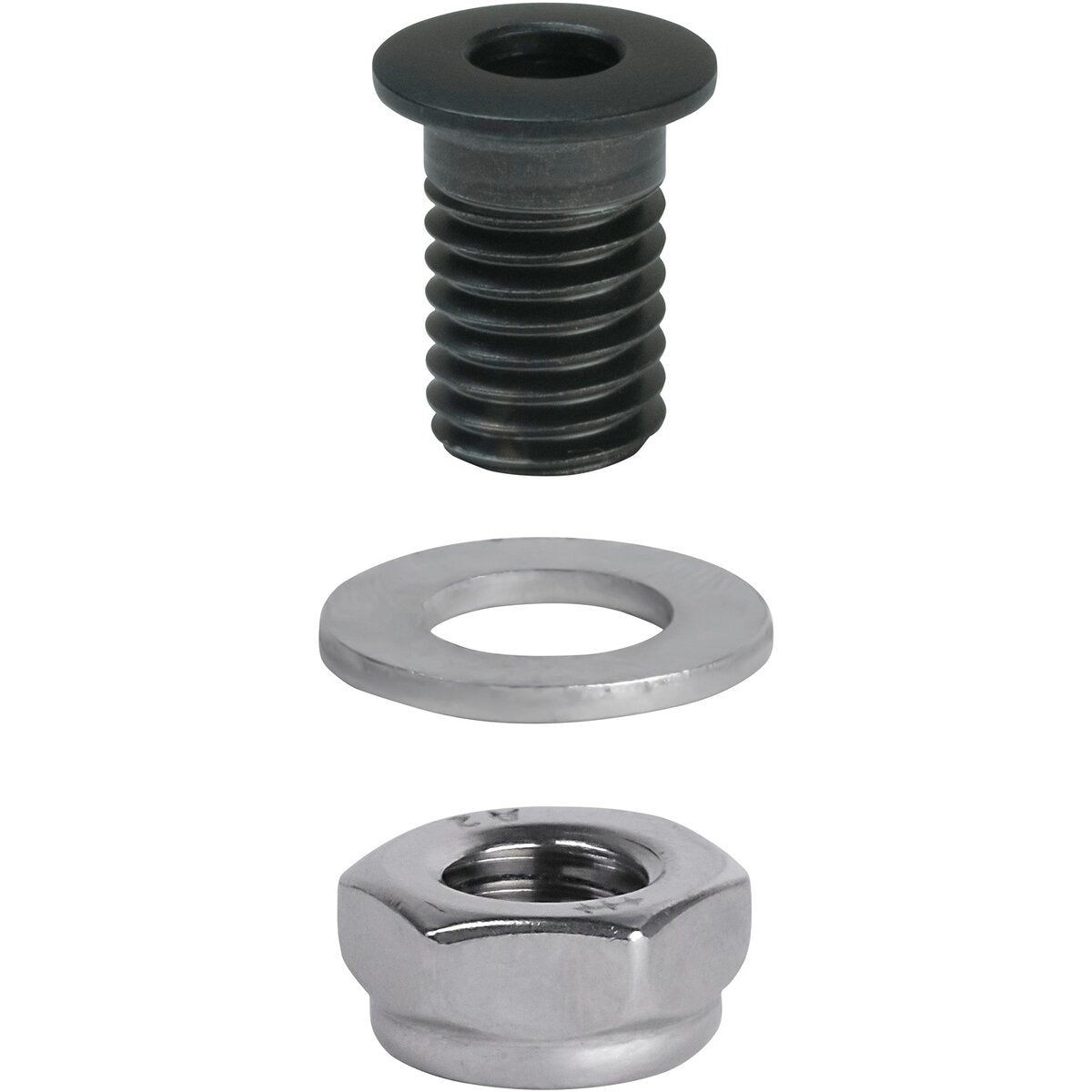

- Bush diameter: 6 mm
- Thread: M10x1
- Bore diameter: 10 mm
- Recommended temperature range: -50 to +150 °C
- Bush material: stainless steel 1.4305, black
- Washer material: stainless steel
- Nut material: stainless steel
