The carrying strap for shotguns is attached directly to the barrel for high carrying comfort.
Previously, the sling swivel had to be laboriously soldered to the barrel. With this unique clamp shell, assembly is now very easy. It is simply placed at the appropriate point on the barrel and then fixed with an Allen screw.
Suitable for shotgun straps up to a strap width of 23 mm.

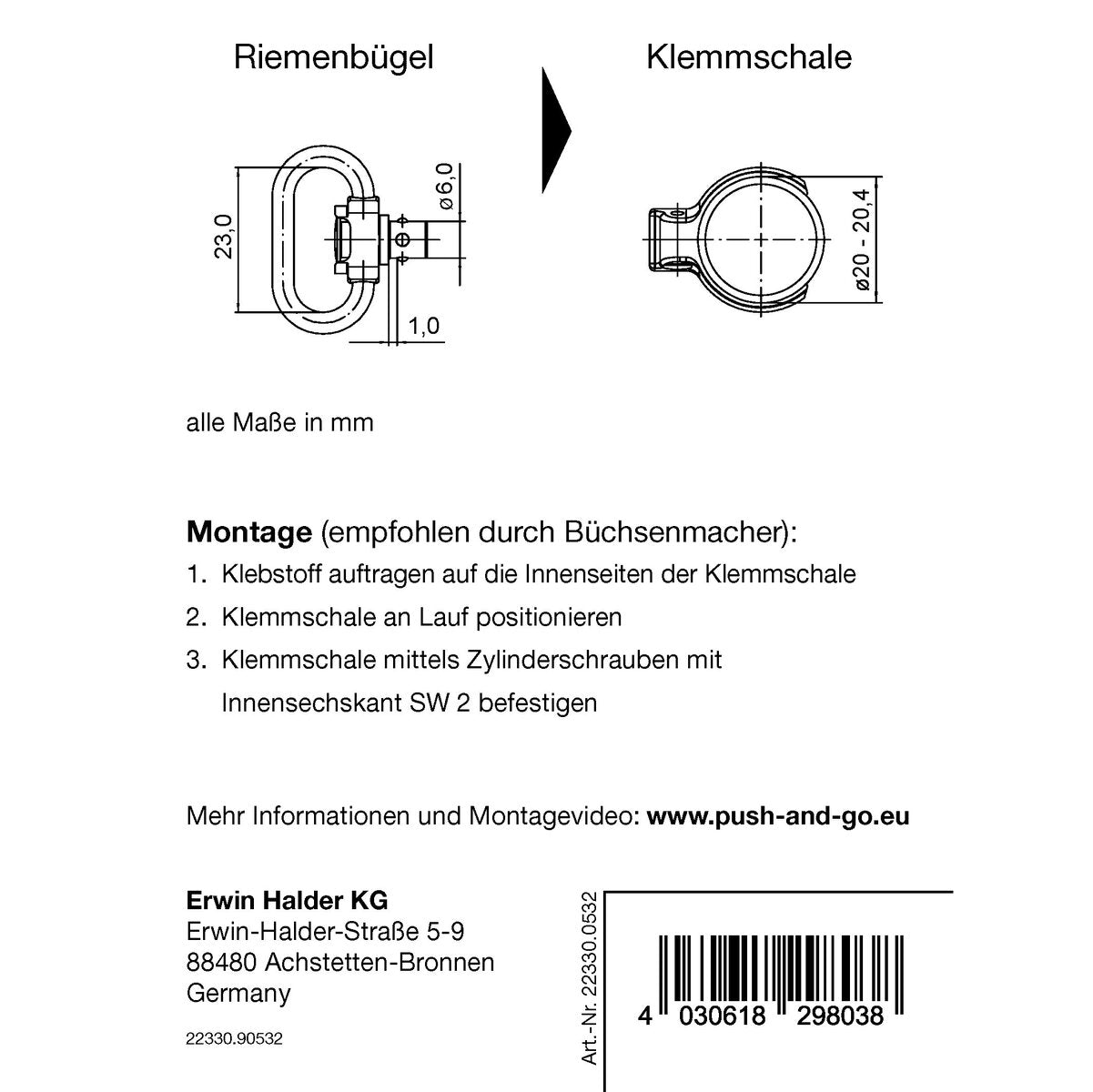

Mounting the clamp shell on the barrel:
- Apply glue to the inside of the clamp shell.
- Position the clamp shell on the barrel.
- Fasten the clamping shell with cheese head screws with an SW 2 hexagon socket.

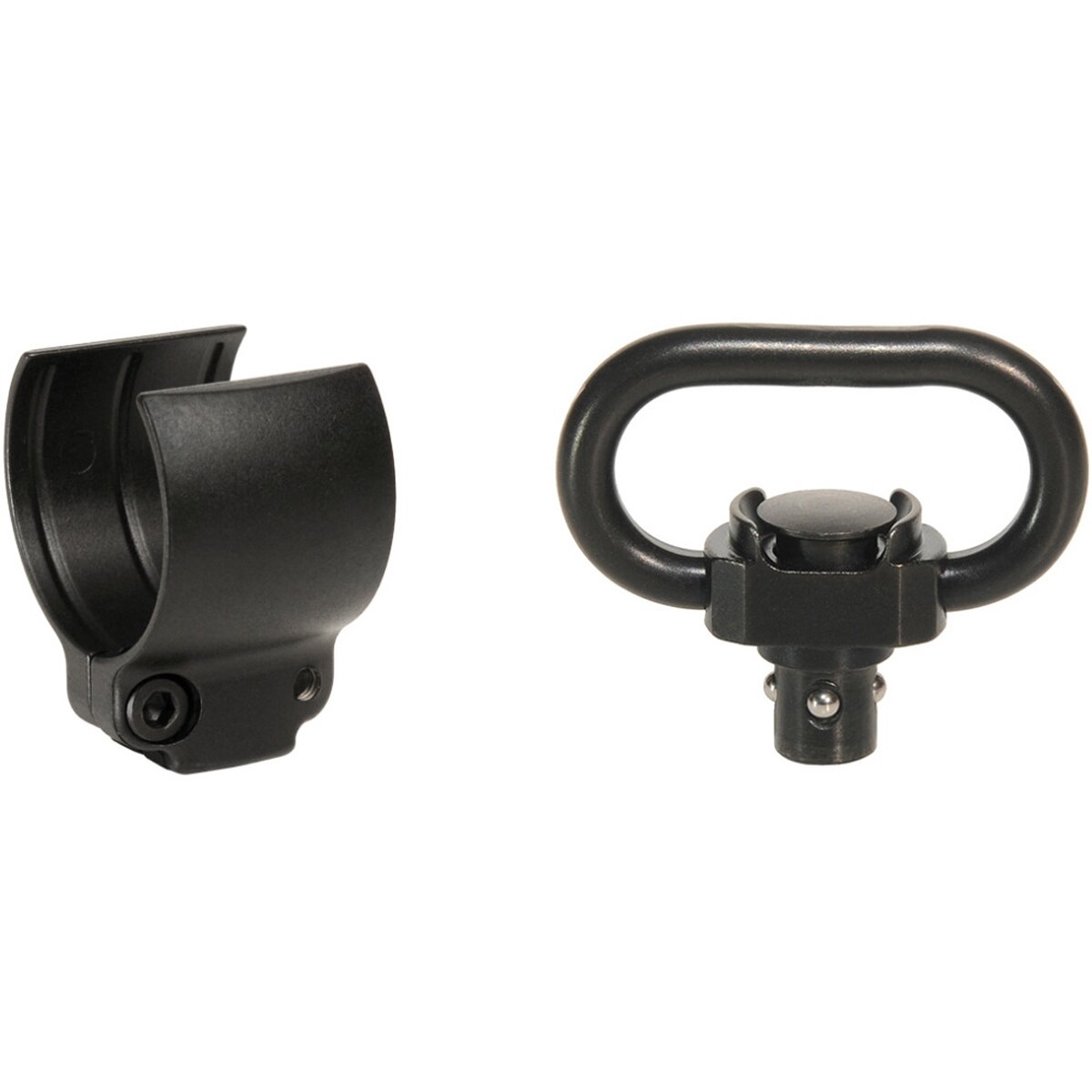

- Slim clamp shell
- Nominal diameter: 6.1 mm
- Tube diameter: 20.0 - 20.4 mm
- Temperature range: -50 to +150 °C
- Strap clip Slim
- Nominal diameter: 6.0 mm
- Inner width: 23 mm
- Max. Load capacity: 1.2 kN
- Temperature range: -50 to +150 °C
