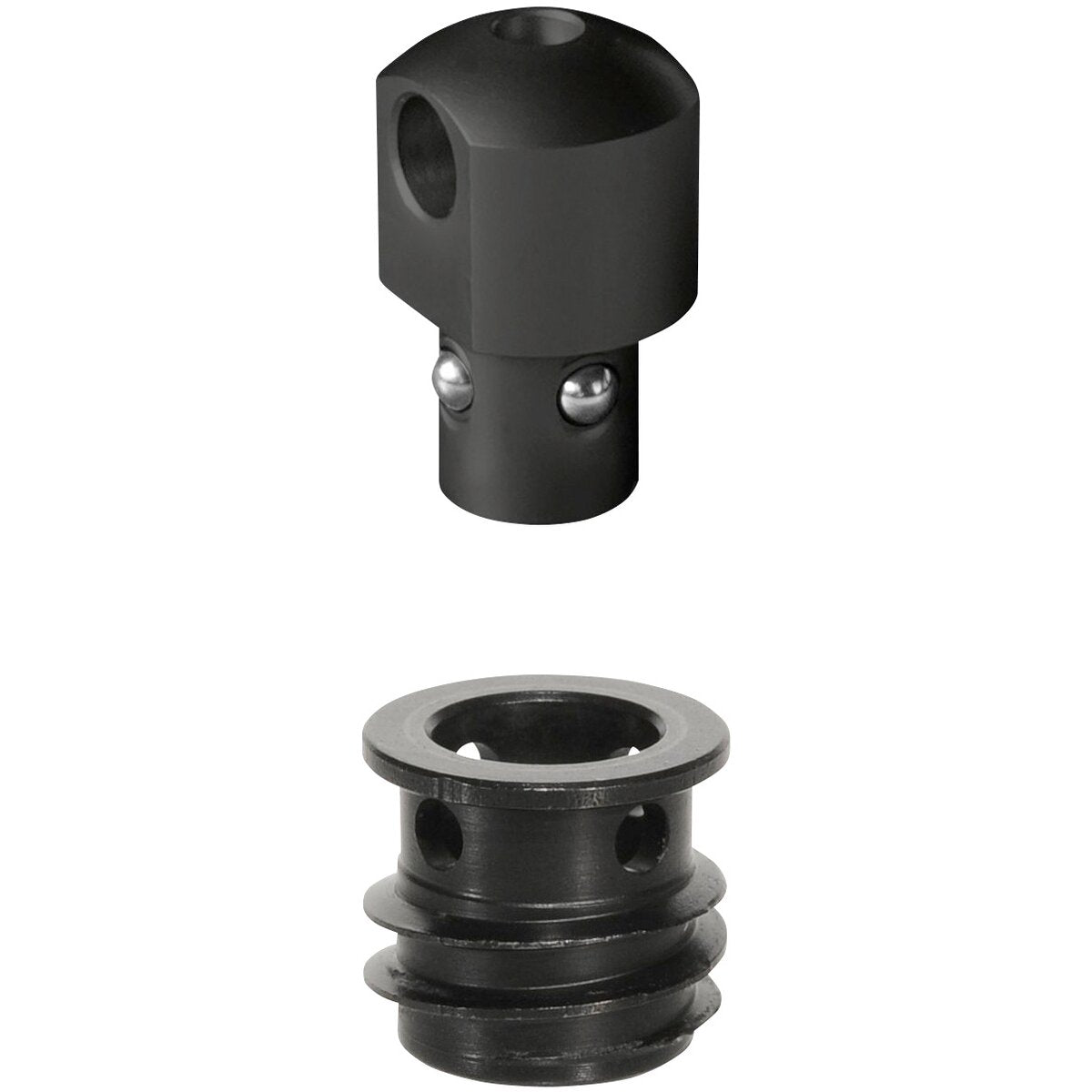

Halder Adapter and socket SLIM (For plastic shafts)

With the Stud Adapter SLIM, slings with removable swivel sling swivels can be used together with the PUSH & GO system. For this purpose, the swivel sling swivels are latched into the stud adapter and can then be snapped into PUSH & GO sockets.

Bipods can also be attached to the weapon using stud adapters.

Assembly (recommended by gunsmith)

For wooden shafts

1. Insert the location hole and preparation for the locking screw according to the instructions
2. The use of adhesive for securing is recommended as an option
3. press in the bush
4. Secure socket with screw

For plastic shafts

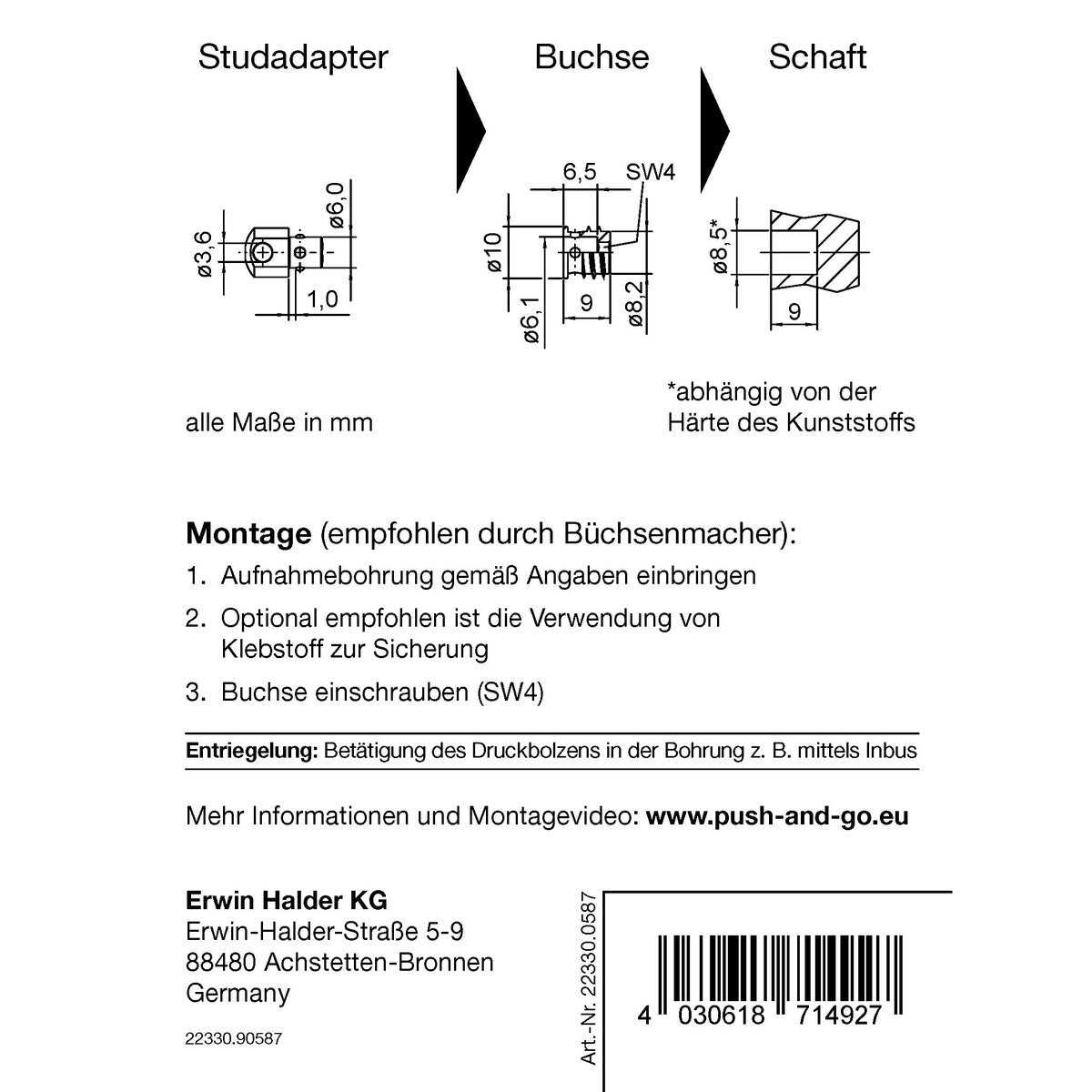

1. Drill the location hole according to the information
2. The use of adhesive for securing is recommended as an option
3. screw in the socket

• SLIM bush for wood
• nominal diameter: 6.1 mm
• location hole: 8.1 mm
• temperature range: -50 to +150 °C
• SLIM bush for plastic
• nominal diameter: 6.1 mm
• location hole: 8.5 mm
• temperature range: -50 to +150 °C
